Zimmer® Patient Specific Instruments
ZimmerŪ Patient Specific Instruments streamline total knee replacement surgery by ensuring accurate and reproducible guide fixation. Our proprietary stabilizing features enhance guide fixation while ensuring the end surgical result matches your preoperative plan. Based on the patient's MRI, mechanical axis-based pin guides conform precisely to the patient's anatomy.
Zimmer Patient Specific Instruments simplify the total knee process from start to finish without compromising your surgical decision making, surgical technique, or intraoperative flexibility. Zimmer Patient Specific Instruments can give you the fit you can feel. |
 Femoral Technique |
The fit you can feel |
|
|
 |
 |
 |
|
 |
 |
|

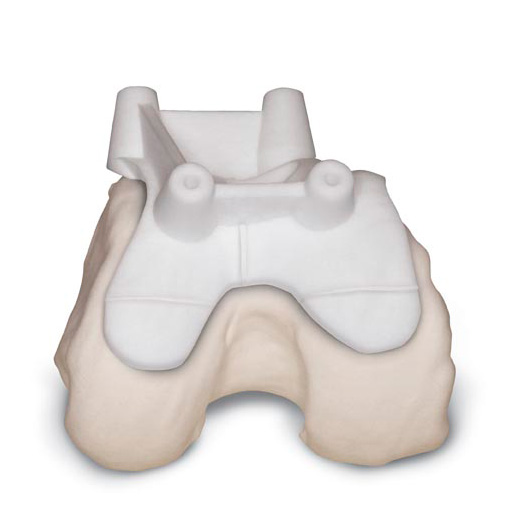

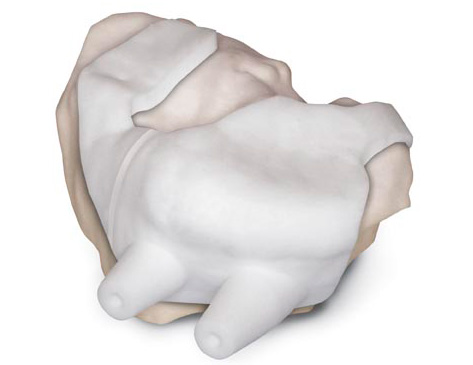

Femoral Pin Guide
Anterior ridge stabilizing mechanism on
the femur guide ensures a secure fit.
|
|
 |
 |
|

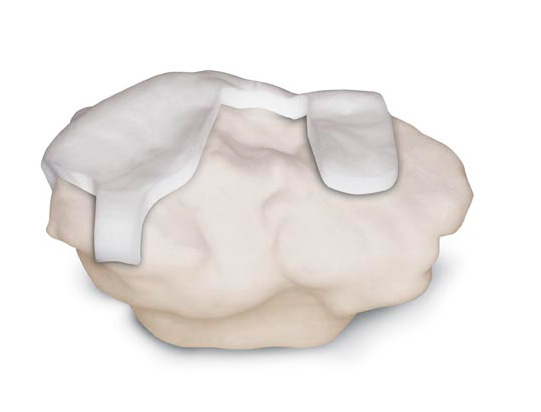

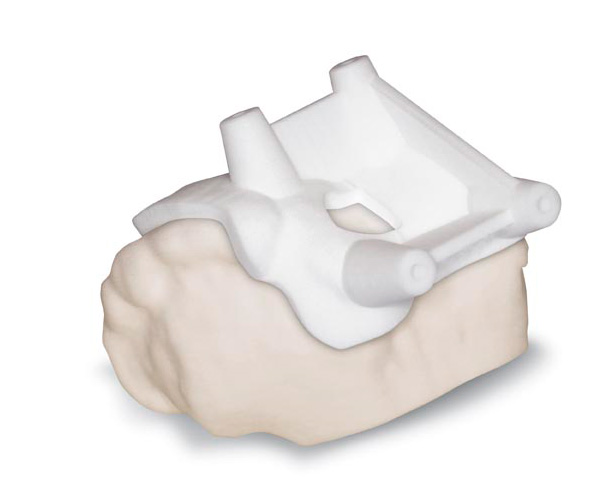

Tibial Pin Guide
Posterior hook on the medial side of the tibia guide stabilizes guide and eliminates lateral rotation.
|
|
|
|
|

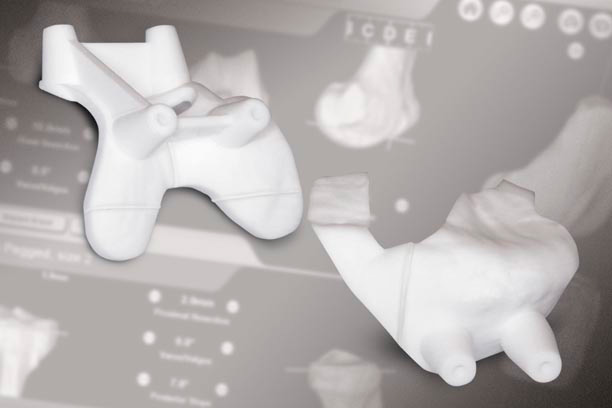

Patient Specific Instruments

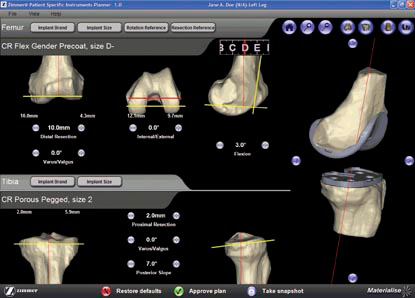

Surgeon controlled customization
|

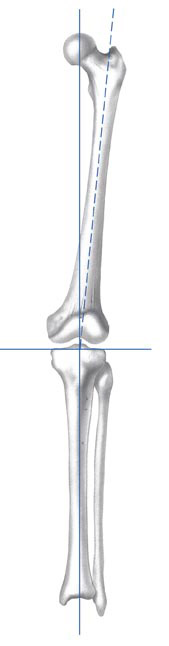

Mechanical axis
alignment
|
3-D modeling from MRI captures true patient anatomy
|
|
